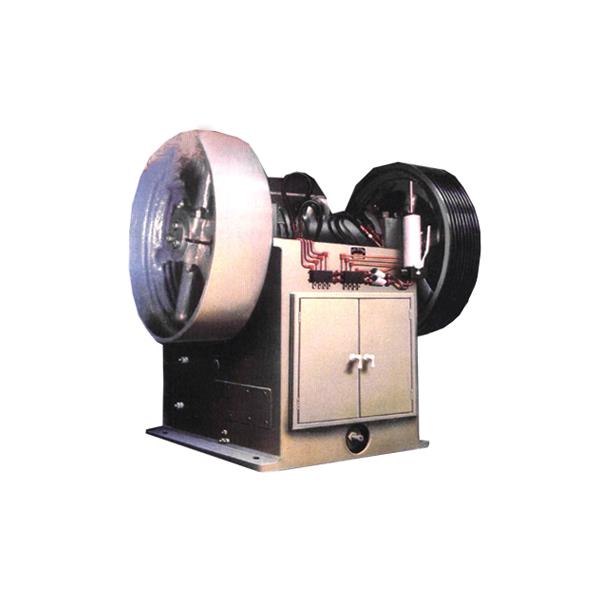

PEF Jaw Crusher

Applications and Characteristics Jaw crusher is one crushing machine with extensive application, and can be classified into PEF compound pendulum jaw crusher and PEJ simple pendulum jaw crusher. Generally speaking, PEF compound pendulum crusher is suitable for coarse and intermediate crushing of...

Send Inquiry

Jaw crusher is one crushing machine with extensive application, and can be classified into PEF compound pendulum jaw crusher and PEJ simple pendulum jaw crusher.

Generally speaking, PEF compound pendulum crusher is suitable for coarse and intermediate crushing of various ores and rocks with compression strength of 250MPa or below, three types of crushers above PEF0609 are able to crush various hard ores and rocks. PEF-X compound pendulum jaw crusher is typically suitable for fine crushing of ores and rocks with intermediate hardness, while simple pendulum jaw crusher is able to crush ores and rocks differently in hardness, and is especially suitable for crushing various hard and strong-corrosive rock materials.

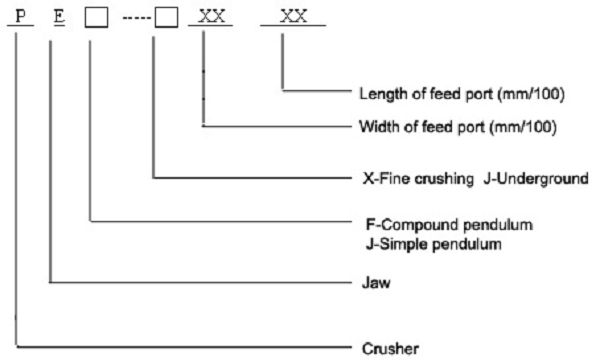

Specifications


Technical Parameters
1 Performance Parameter Table of PEF Compound Pendulum Jaw Crusher

Specification		PEF 0204	PEF 0406	PEF 0507	PEF 0609
Width of feed port	L mm	250	400	500	600
Width of feed port	W mm	400	600	750	900
Recommended maximum feeding size mm		210	340	400	500
Width of open-side discharge port	Nominal size mm	40	60	75	100
Width of open-side discharge port	Adjustment range mm	±20	±30	±27	±25
Output if discharge port is at nominal value m3/h		10	18	40.5	60
Motor	Model	Y180L-6	Y225M-6	YR280M-6	JR75-8
	Power kW	15	30	50	75
	Speed r/min	970	980	985	730
	Voltage V	380
Overall dimensions	L mm	1033	1560	3495	2575
	W mm	1016	1742	1940	3723
	H mm	1140	1593	2205	2373
Total weight (motor exclusive) kg		2325	6650	10570	16950

Specification		PEF 0710	PEF 0912	PEF 0207	PEF 0210
Width of feed port	L mm	750	900	250	250
Width of feed port	W mm	1060	1200	750	1050
Recommended maximum feeding size mm		630	750	210	210
Width of open-side discharge port	Nominal size mm	110	130	40	40
Width of open-side discharge port	Adjustment range mm	±30	±35	±20	±20
Output if discharge port is at nominal value m3/h		110	130	20	32
Motor	Model	YR280M-6	JR126-8	Y225M-6	Y280S-6
	Power kW	90	110	30	45
	Speed r/min	972	730	980	980
	Voltage V	380
Overall dimensions	L mm	2730	5000	1482	1482
	W mm	2760	4471	1914	2342
	H mm	2820	3280	1516	1535
Total weight (motor exclusive) kg		27940	44130	6345	7715

Remark: Output in table means ores (at natural state) with bulk density of 1.6t/m3 of to-be-crushed materials and compression strength of 150MPa, new jaw plate is contributing to continuous feeding, and granularity of material fits to relevant national standards.

2 Performance Parameter Table of PEJ Simple Pendulum Jaw Crusher

Specification		PEJ 0609	PEJ 0912	PEJ 1215	PEJ 1521
Width of feed port	L mm	900	1200	1500	2100
Width of feed port	W mm	600	900	1200	1500
Recommended maximum feeding size mm		500	750	1000	1300
Width of open-side discharge port	Nominal size mm	100	130	155	180
Width of open-side discharge port	Adjustment range mm	±25	±35	±40	±45
Output if discharge port is at nominal value m3/h		60	180	310	550
Motor	Model	YR315M-8	JR126-8	YR450-12	YR500-12
	Power kW	75	110	160	250
	Speed r/min	740	730	492	490
	Voltage V	380	380	3000/6000	3000/6000
Thin oil lubrication	Model			Lubrication station 63	Lubrication station 63
Thin oil lubrication	Pressure MPa			0.4	0.4
Dry oil lubrication	Model	JB2305-78 DDB-10 Dry pump	JB2305-78 DDB-10 Dry pump	JB2305-78 DDB-18 Dry pump	JB2305-78 DDB-18 Dry pump
Dry oil lubrication	Pressure MPa	10	10	10	10

Remark: Output in table means the bulk density of to-be-crushed materials is 1.6t/m3.


Features of PEF jaw crusher
–Excellence in casting engineering

–Excellent material intake capacity
–Easy installation & maintenance
–High production and reduction
–Reliability, high availability

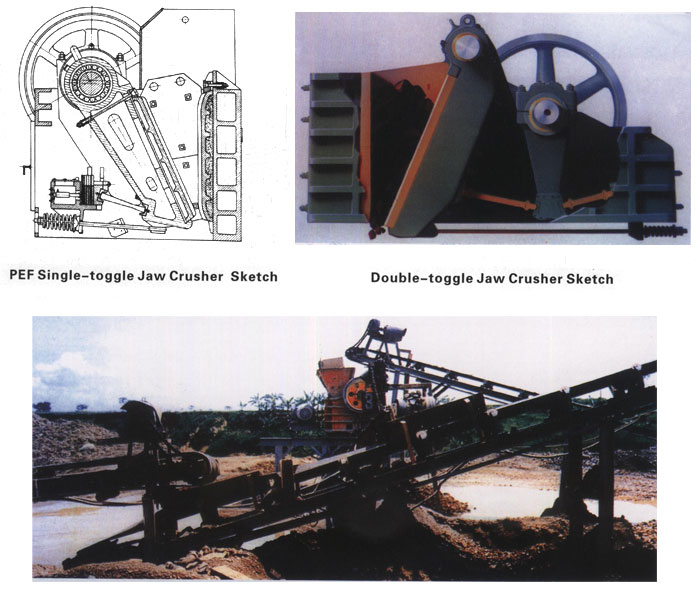

PEF Jaw crusher working principle

A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw, called a swing jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker. The volume or cavity between the two jaws is called the crushing chamber. The movement of the swing jaw can be quite small, since complete crushing is not performed in one stroke. The inertia required to crush the material is provided by a weighted flywheel that moves a shaft creating an eccentric motion that causes the closing of the gap.

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
