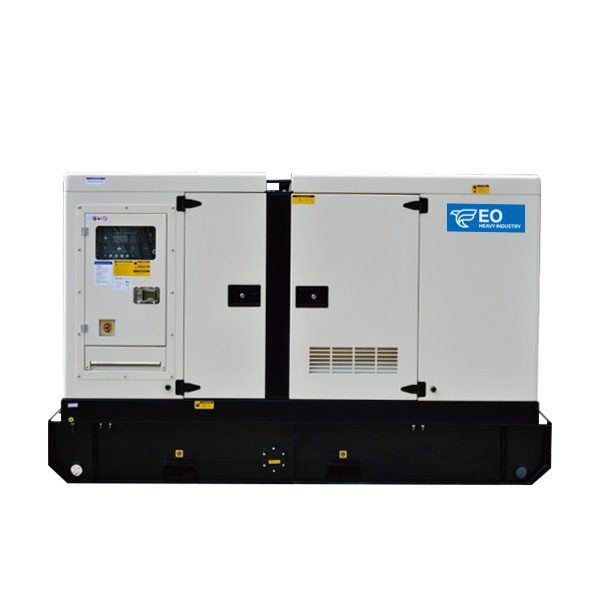

Diesel Generator Set 220 KW

• Product Details

Prime power：275 kVA / 220 KW

Standby power：303 kVA / 242 KW

Frequency / RPM：50HZ / 1500RPM

Engine model：1606A-E93TAG4

Noise：TBD @7M

Parameters：

Features：

1.Strong Power, Stable Performance

A. Compact structure

B. High quality steel and paint craftwork

C. Advanced waterproof and dustproof design

D. Excellent anti-vibration make

2.Enhanced Safety

*Information Safety *Operation Safety *Electric Safety

The machines are equipped with monitoring system which provides real-in-time monitoring. The selected PLC-7420 control module is multi-functional and durable. Please refer to the descriptions below for more details.

3.Environmental

*Powerful Engines *Excellent Silencers *High Quality Sound Absorbing Material

Multiple noise reduction configuration can reduce the noise level by 15-35dB(A). This design makes the generation set ideal for working during evening, in residential area or in the environments which requires super silence and with super low emission.

4.Easy to Operate

A.Control System

Micro-processor cored digital system. Multiple language options. Compatible with ATS for AMF and synchronizing multi generating sets.

B.Simple Fuel and Water Refilling Design

C.User Friendly Design

D.Convenient Connection

E.Easy Transportation

F.Easy to Maintain

CONTROL SYSTEM

A.PLC-7420

EO PLC-7420 generator controllers integrating digital, intelligent and network techniques are used as the automatic control systems for diesel generators. It can carry out functions including automatic start/stop, data measure and alarming.

Upon detection of a mains (utility) failure the module automatically starts the generating set. Once the mains (utility) power has been restored it instructs the generator set to stop.

Features:

A.Microprocessor control, with high stability and credibility.

B.Mains supply and generator operation montoring.

C.Multiple protections. Multiple parameters display, such as pressure, temperature.

D.Manual and automatic work mode selectable.

E.Integral speed/frequency detecting, telling status of start, rated operation, overspeed.

F.Communication with PC via RS485 or RS232 interface, using MODBUS protocol.

G.Multi languages are available.

B.PLC-920

EO PLC-920 generator controllers integrating digital, intelligent and network techniques are used as the automatic control systems for diesel generators. It can carry out functions including pre-alarm, warning & electrical trip, fail monitoring and controls, etc.

Features:

A.Parameter configuration via RS-232 serial communication.

B.ECU powers, ECU stop, STOP or fuel solenoid selection.

C.Automatic transfer switching control and engine control.

D.Adjustable start, load and stop timers.

OPTIONAl PARTS:

Paralleling Switchgear

AUTO TRANSFER SWITCH(ATS)

TRAILER

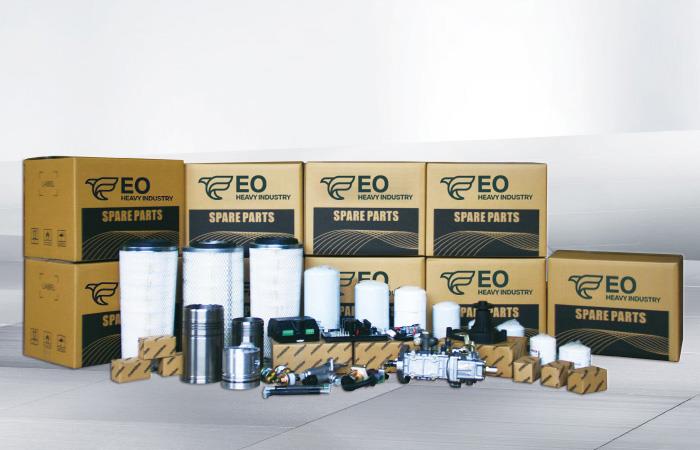

SPARE PARTS

Please feel free to contact with us for more details about optional parts or any other information.

More:

As a professional manufacturer and designer of Diesel Generator Set 275kVA/220KW for more than 10 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.

•
