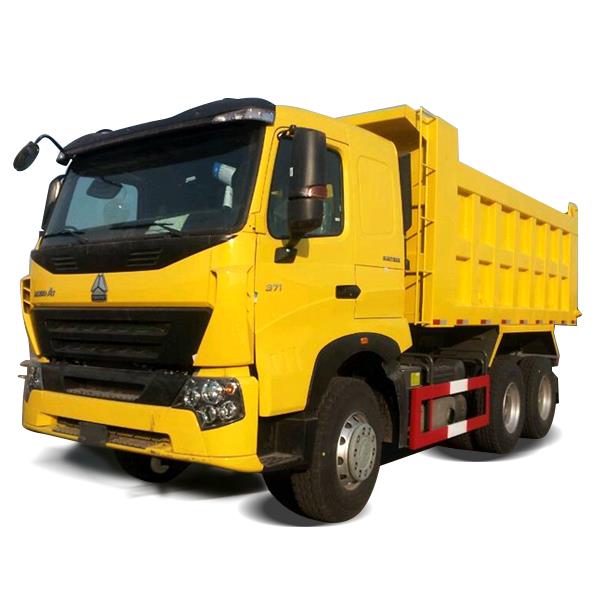

Howo A7 6x4 Dump Truck

Sinotruk Howo A7 6x4 Dump Truck Model No.: ZZ3257N3847N1 Horsepower: 336/371 HP Transmission: HW19710 Cargo Body Size: 20 CBM Detailed Specification: Key Specifications/Special Features: 1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk...

Send Inquiry

Sinotruk Howo A7 6x4 Dump Truck

Model No.: ZZ3257N3847N1

Horsepower: 336/371 HP

Transmission: HW19710

Cargo Body Size: 20 CBM

Detailed Specification:

SINOTRUK HOWO A7 6x4 Dump Truck – 20 CBM
Chassis Model	ZZ3257N3847N1
Driving Type	Left Hand Driving (Right Hand Driving is optional)
Production Year	2016. New truck.
Cabin	A7-W（Howo A7 6x4 Dump Truck）, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine	Make: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Emission Standard: Euro 2
	6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Displacement: 9.726 L
Transmission	HW19710, 10F & 2R, with PTO
Transmission	Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance（Howo A7 6x4 Dump Truck）
Front Axle	HF9, 1x9000 KGS
Front Axle	Steering with double T-cross section beam
Rear Axle	HC16, 2x16000 KGS
	Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles（Howo A7 6x4 Dump Truck）.
	Ratio:5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members（Howo A7 6x4 Dump Truck）
	Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels（Howo A7 6x4 Dump Truck）
	Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	12.00R20, radial tires with one spare tire.
Tires	Optional: 315/80R22.5 tubeless tires.
Fuel Tank	300 L
Cargo Body	580023001500 mm, 20 CBM, Floor 8 mm and side 6 mm, Front lifting system
Overall Dimension	870025503500 mm

Key Specifications/Special Features:

1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk Howo A7 6x4 Dump Truck, Howo 6x4 Dump truck, Howo Mining King Dump Truck, Howo 4x2 Cement Mixer Trucks, Howo 6x4 Cement Mixer Trucks, Howo A7 6x4 Cement Mixer Trucks, Howo 8x4 Cement Mixer Trucks and so on.

2. We have enough experience to deal with some trucks troubles, and provide the high quality low price trucks parts.

3. Now we are Establish a good co-op relationship in Africa, mid-east, Asia and so on.

4. Mainly for our customer is: local dealer, whole agent, and trucks company

Our company is professional in buses ,heavy ruck, construction machinery and truck parts many years.
