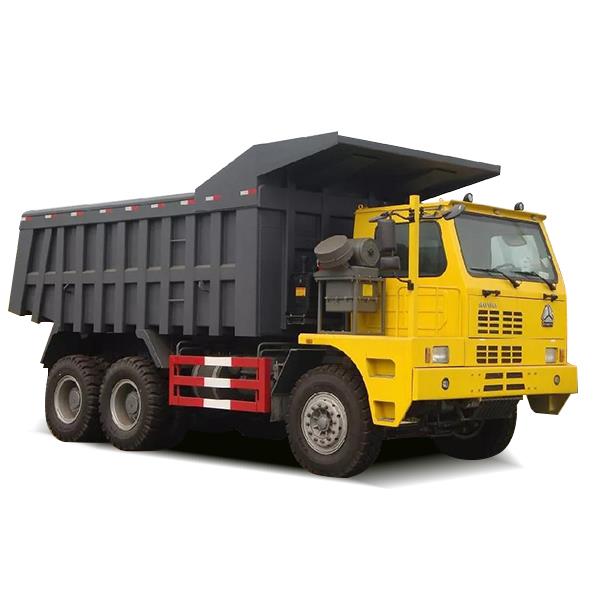

Howo Mining King Dump Truck

Howo Mining King Dump Truck Model No. : ZZ5707S3841AJ Horsepower: 371 HP Tank Body: 30.56 CBM Loading Capacity: 61-70 Tons Detailed Specification: Key Specifications/Special Features: 1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk Howo...

Send Inquiry

Howo Mining King Dump Truck

Model No. : ZZ5707S3841AJ

Horsepower: 371 HP

Tank Body: 30.56 CBM

Loading Capacity: 61-70 Tons

Detailed Specification:

SINOTRUK HOWO Mining King Dump Truck
Chassis Model	ZZ5707S3841AJ
Driving Type	Left Hand Driving
Production Year	2016. New truck.
Cabin	HW7D cab (Howo Mining King Dump Truck), without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine	Make: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Engine Model: WD615.47, Euro 2, 371 HP
	6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Displacement: 9.726 L
Transmission	HW19710, 10F & 2R, with PTO
Transmission	Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Front Axle	HF12, 1x12000 KGS
Front Axle	Steering with double T-cross section beam (Howo Mining King Dump Truck)
Rear Axle	AC26, 2x26000 KGS
	Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles (Howo Mining King Dump Truck).
	Ratio: 10.47
Chassis	Front suspension: 1500mm, Half the elliptical leaf spring with shock absorber cavitation
Chassis	Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt (Howo Mining King Dump Truck)
Brake	Service brake: Dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels (Howo Mining King Dump Truck)
	Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 7.5Kw/24V
	Alternator: 28V-1500kw
	Batteries: 2X12V/165Ah
Tires	14.00-25, bias tire with one spare tire
Fuel Tank	500 L
Cargo Body	580031001700 mm, 30.56 CBM, Floor 12 mm and side 10 mm, HYVA front side lifting
Overall Dimension	904532003770 mm

Key Specifications/Special Features:

1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk Howo A7 6x4 Dump Truck, Howo 6x4 Dump truck, Howo Mining King Dump Truck, Howo 4x2 Cement Mixer Trucks, Howo 6x4 Cement Mixer Trucks, Howo A7 6x4 Cement Mixer Trucks, Howo 8x4 Cement Mixer Trucks and so on.

2. We have enough experience to deal with some trucks troubles, and provide the high quality low price trucks parts.

3. Now we are Establish a good co-op relationship in Africa, mid-east, Asia and so on.

4. Mainly for our customer is: local dealer, whole agent, and trucks company

Our company is professional in buses ,heavy duty truck light truck,construction machinery and truck parts many years.
