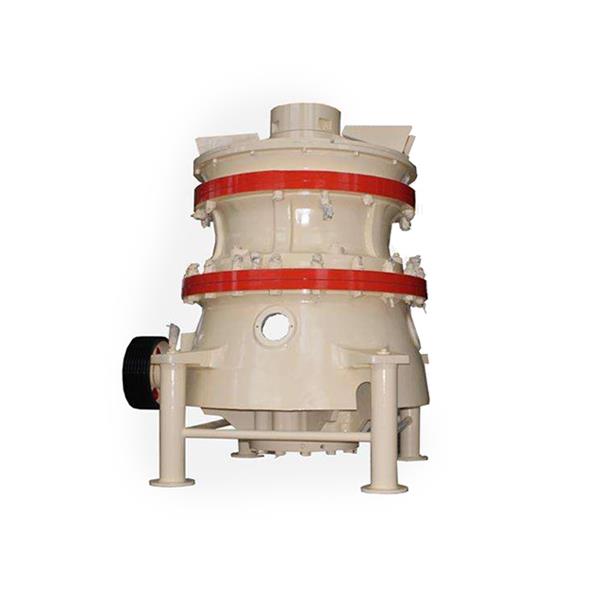

HP High-energy Cone Crusher

HP high-energy cone crusher is the most advanced crusher in the world. With the big stroke as Symons Cone Crusher, its speed increased about 50%, impacting the material with high speed. Enlarge the crushing capacity and graininess proportion in the crushed material. The characteristic is higher throughput, better product granularity and lighter weight.

Compared with traditional crusher as spring cone crusher, single cylinder hydraulic cone crusher and Symons cone crusher, HP Crusher has the advantage of high capacity, better graininess.

Performance Parameter Table
(1)Power, speed and weight

Type\Parameter	Motor power (kw)	Driving shaft speed (r/min)	Body weight (kg)	Adjusting Bush Weight (kg)	Cone weight (kg)
HP300	200	1020	18000	3240	2060
HP500	315	865	35000	7000	4500

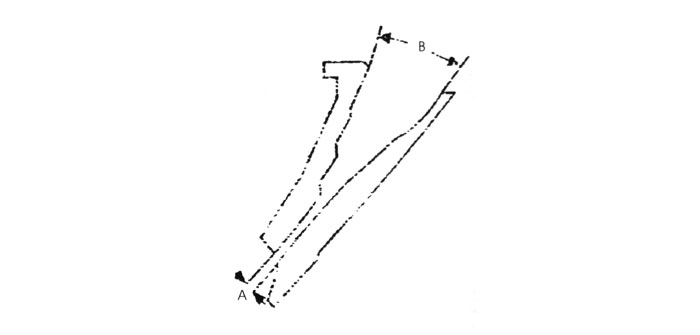

(2)Inlet & outlet dimension

Type	Cavity type	Standard		Short-head
Type	Cavity type	Outlet 口A	Max. inlet 口B	Outlet 口A	Max. inlet 口B
HP300	Narrow	16	110	8	25
	Middle	20	150	10	60
	Wide	26	215	13	85
HP500	Narrow	16	130	8	25
	Middle	22	170	10	60
	Wide	30	300	13	90

(3)Output(t/h)

Type\Outlet(mm)	8	10	13	16	19	22	25	32	38	45	51
HP300	70-80	100-120	130-160	160-190	180-220	195-235	205-250	225-280	270-340	310-390
HP500	120-150	155-190	200-260	250-310	280-360	310-380	320-400	360-450	400-490	450-570	520-650

(4)Product grain fineness

Grain fineness(mm)\ Outlet(mm)	8	10	13	19	25	38	51
102							100
76						100	98
51					100	98	75
38				100	98	75	50
25			100	98	75	50	40
19		100	98	75	50	40	30
13	100	98	75	50	40	30	23
10	98	75	50	40	30	23	15
8	75	50	40	30	23	15	10
4.8	50	40	30	23	15	10	7
3.4	40	30	23	15	10	7	5
2.4	30	23	15	10	7	5	4
1.7	23	15	10	7	5	4	3

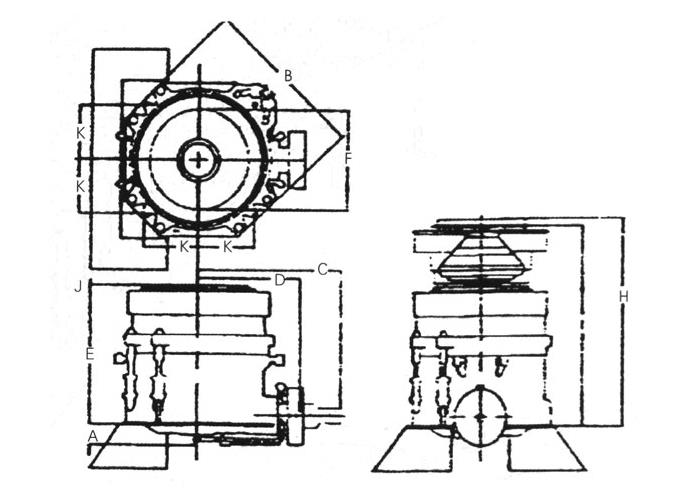

(5)Overall dimension(mm)

Data\Type	HP300	HP500
A	270	425
B	2000	2730
C	2000	2650
D	1350	1760
E	1850	2290
F	1100	1535
H	2500	3300
I	2400	3160
K	660	883

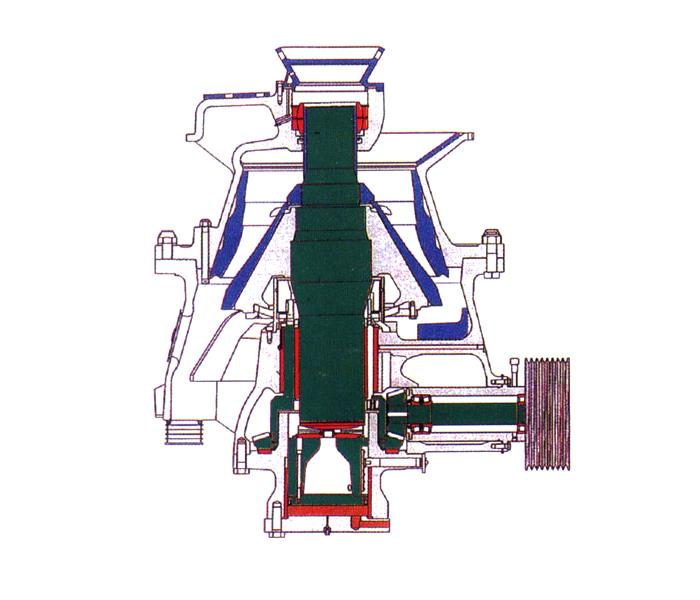

Brief description about HP high-energy cone crusher
Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses diluted oil and water as two kinds of sealed formation to make plaster powder and engine oil separated . The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.


Features Of HP high-energy cone crusher:

1. Laminating crushing.
2. Well-proportioned particle size.
3. Superior crushing capacity.
4. Successive stable operation.
5. High production capacity (2 times than previous crusher)
6. Adoption of straight metallic contact, which make the replacement of active and fixed cone liners more fast and easy.
7. High efficiency revolving input unit make liners wear evenly.
8. Sweeping system keep its interior tidy.
9. Wide angle star jib make the entry of material more smooth.
10. Automatic overload protection system which prevent from interfusion of iron material.
11. Screw bevel gear system with mute operated.

Our Services:
Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
