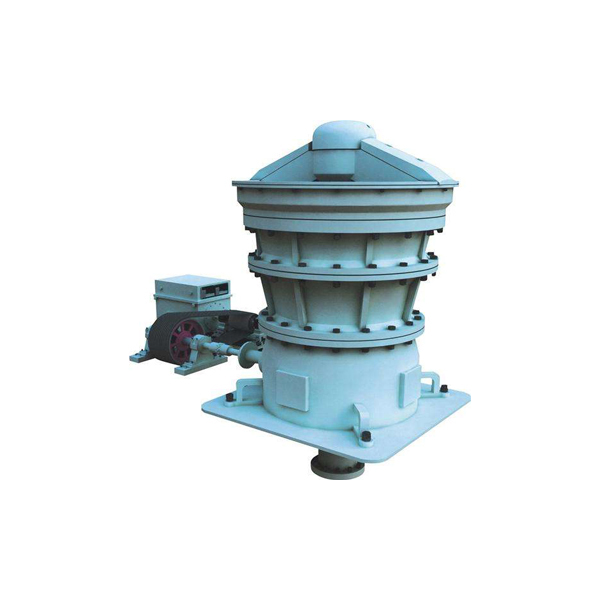

Hydraulic Gyratory Crusher

• Product Details

 Compared with jaw crusher, hydraulic gyratory crusher product size if uniform, wearing of crushing wall is small, operating rate is high and production capacity can reach up to 3-4 times. Since the direct turning mode is adopted for feeding, such production facilities as storage bin for raw ore and ore feeder can be omitted during coarse crushing of crushing production technology. it is the preferred typical equipment for large and medium sized mines and other industries for coarse crushing of various hard materials.

Generally, the hydraulic gyratory crusher is produced to install the hydraulic device on lower part of its base to support the crushing cones. The safe insurance of crusher and adjustment of ore discharging mouth are realized by utilizing the hydraulic energy storage system. The unreliability of safety devices of original suspension shaft type gyratory crusher and shortage of troublesome adjustment of ore discharging mouth can be overcome to bring new life to the gyratory crusher.

Performance Parameter Table of Hydraulic Gyratory Crusher

Note: The above parameters for reference only, the actual production capacity are based on the type of material and production conditions

Features & Advantages of hydraulic gyratory crusher
 1.Deep Crushing Chamber,Continuous Work, High Production Capacity,Low Power Consumption
 2.Relatively Stable Running,Light Vibration
 3.Feed Materials Itself Without Additional Ore Bin And Feeder
 4.Gyratory Crusher is Easy to Start
 5.The Sheet Product of Gyrating Crusher is Less Than That of Jaw Crusher
 6.High Efficience,Long Life Span,Easy Maintenance,Wide Application

Structure of hydraulic gyratory crusher
 1. Equipment adopts inblock cast frame with long service life and higher reliability.
 2. Cone crusher with hydraulic adjustment of both institutions, to facilitate rapid adjustment of cone crusher nesting population size.
 3. This equipment has the function of hydraulic insurance and clearing, which makes it more reliable and time saving.
 4. This equipment uses automatic and intelligent controlling system, integral hydraulic system of lubrication.

hydraulic gyratory crusher Working Principle:

When working the rotation of the motor through pulley or coupling, drive shaft and the conical portion of the eccentric force moving around the circle next to a fixed point for rotating pendulum movement, so that the cone crusher crushing wall sometimes near and sometimes off the solid adjustment sleeve mounted on rolling acetabular wall surface, the ore in the crushing cavity constantly under attack, pressing and bending and crushing ore.

 Bevel gear drive motor through eccentric rotation, so crushing cone make swing movement. crushing cone sometimes close and sometimes away from the fixed cone, to complete the crushing and nesting. Support sleeve and frame body connection is pressed by spring, when the piece of metal and other objects which can not be broken fall within the crusher , compressive deformation of the spring discharge foreign objects, to achieve safety and prevent damage to the machine.

Our Services:
 Pre-sale services: enthusiasm
 We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
 Sale services: servant

 Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
 After-sale services: faithfulness

 To establish long term friendship, we will regularly pay return visit to customers.
 In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

•
