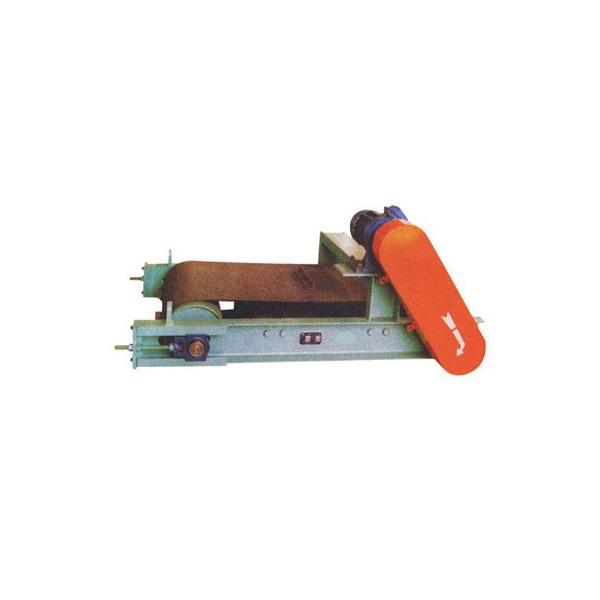

High Intensity Overband Belt Permanent Magnetic Separator

Name: High Intensity Overband Belt Permanent Magnetic Separator Country: China Usage: Applicable to the environment protection, wood, food,casting , chemical industry, etc. C lassification : Belt Magnetic Separator Parameters: 1.Parameters of Small Sized Products: 2.Parameters of Huge and Medium...

Send Inquiry

Name: High Intensity Overband Belt Permanent Magnetic Separator
Country: China
Usage: Applicable to the environment protection, wood, food,casting , chemical industry, etc.
Classification: Belt Magnetic Separator

Parameters:

1.Parameters of Small Sized Products:

Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Drive motor power(kw)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions					Weight (KG)
Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Drive motor power(kw)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	B	C	D	E
RCY-C65	T1	650	200	1.5	≤4.5	90	2110	1053	722	776	873	1100
	T2			2.2		120	2110	1053	722	776	873	1450
	T3			2.2		150	2260	1053	722	870	873	1700
RCY-C80	T1	800	250	2.2	≤4.5	90	2320	1253	722	970	1073	1500
	T2			2.2		120	2375	1253	722	970	1073	1700
	T3			3		150	2470	1253	722	966	1073	2000
RCY-C100	T1	1000	300	3	≤4.5	90	2690	1450	803	1120	1273	1850
	T2			3		120	2690	1450	803	1120	1273	2100
	T3			4		150	2800	1450	828	1222	1273	3600
RCY-C120	T1	1200	350	4	≤4.5	90	2890	1713	868	1320	1523	2400
	T2			4		120	2890	1713	868	1320	1523	3600
	T3			5.5		150	3040	1713	868	1320	1523	6000
RCY-C140	T1	1400	400	4	≤4.5	90	3210	1913	924	1520	1723	3800
	T2			5.5		120	3210	1913	924	1520	1723	5800
	T3			5		150	3210	1913	924	1536	1723	7340

2.Parameters of Huge and Medium Sized Products

Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Drive motor power(kw)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions					Weight (KG)
Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Drive motor power(kw)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	B	C	D	E
RCY-C160	T1	1600	450	5.5	≤4.5	90	3610	2190	960	1720	1923	5750
	T2			5.5		120	3782	2190	1020	1720	1923	9400
	T3			7.5		150	3810	2190	1020	1820	1923	12000
RCY-C180	T1	1800	500	7.5	≤4.5	90	3990	2430	1020	1970	2173	9200
	T2			7.5		120	4045	2570	1020	1970	2173	10590
	T3			11		150	4245	2570	1050	2070	2173	14600
RCY-C200	T1	2000	550	7.5	≤4.5	90	4270	2633	960	2270	2430	10500
	T2			11		120	4510	2670	1020	2350	2430	14070
	T3			11		150	4810	2670	1070	2350	2430	19160
RCY-C220	T1	2200	600	11	≤4.5	90	4810	2820	1020	2550	2670	13880
	T2			11		120	4810	2820	1070	2550	2670	18240
	T3			15		150	4810	2820	1170	2550	2670	25000
RCY-C240	T1	2400	650	15	≤4.5	90	5210	3120	1070	3100	2850	18650
	T2			15		120	5210	3210	1170	3100	2850	23870 29910
	T3			15		150	5210	3210	1182	3100	2850	23870 29910

Introduction：
High Intensity Overband Belt Permanent Magnetic Separator can remove the ferromagnetic impurities from the non- magnetic materials burden on the conveyor belt.
High Intensity Overband Belt Permanent Magnetic Separator can protect downstream important and in most cases very expensive equipments from being potentially damaged by tramp metal.

Application:
High Intensity Overband Belt Permanent Magnetic Separator is suitable for the material is thin, and less ferromagnetic impurities occasion. It is widely applied in environment protection, wood, food,casting , chemical industry, building material, mining, light industry and so on.

Features:
1. Overall dimension is small size, about 70% length and 86% height of series RCYD.
2. Low noise and can attract and remove iron continuously.
3. Light weight. Average weight is usually less than 75% of that of series RCYD.
4. Economic products for the compact structure; fewer components; abandoned flat roll; easy to be hoisted and repaired;
5. Compact structure, small body, convenience for loading and maintain, able to work in tight occasion.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of High Intensity Overband Belt Permanent Magnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
