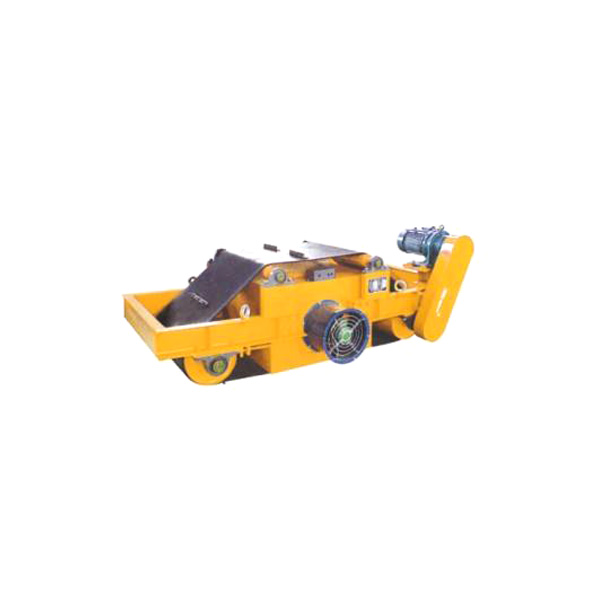

Conveyor Belt Air-cooled Electromagnetic Separator

Product Details: Name: Conveyor Belt Air-cooled Electromagnetic Separator Country: China Usage: Applicable to a variety of less iron dust occasions C lassification : Electromagnetic Separator Parameters: Introduction： Conveyor Belt Air-cooled Electromagnetic Separator is added with drive motor,...

Send Inquiry

Name: Conveyor Belt Air-cooled Electromagnetic Separator

Country: China
Usage: Applicable to a variety of less iron dust occasions
Classification: Electromagnetic Separator

Parameters:

Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension (MM)	Excitation power (KW)	Magnetic induction of Rated height(MT)	Drive motor power(KW)	Fan power (KW)	Main dimensions						Weight (KG)
Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension (MM)	Excitation power (KW)	Magnetic induction of Rated height(MT)	Drive motor power(KW)	Fan power (KW)	A	B	C	D	E	F
RCDC-5	Air-coo led	500	150	≤2	≥70	1.5	0.37	2160	1136	733	832	776	411	880
RCDC-6		650	200	≤3	≥70	1.5	0.37	2240	1270	733	881	873	486	1100
RCDC-8		800	250	≤4.5	≥70	2.2	0.55	2465	1539	735	1240	1073	537	1580
RCDC-10		1000	300	≤6	≥70	3	0.55	2650	1727	821	1365	1273	650	2150
RCDC-12		1200	350	≤9.5	≥70	3	1.1	3090	2052	908	1660	1523	761	3250
RCDC-14		1400	400	≤12	≥70	4	1.1	3266	2243	974	1930	1723	841	4050
RCDC-16		1600	450	≤14.4	≥70	5.5	1.5	3546	2505	1032	2100	1930	945	6150
RCDC-18		1800	500	≤15.5	≥70	7.5	1.1*2	3910	2770	1550	2030	2130	1393	9000
RCDC-20		2000	550	≤18	≥70	7.5	1.5*2	4270	2880	1560	2180	2330	1337	12000

Introduction：
Conveyor Belt Air-cooled Electromagnetic Separator is added with drive motor, drive drum, driven drum, iron-cleaning belt on the basis of RCDA series, also using an air blower for the cooling of excitation coils. This machine is usually suspended above the conveyor belt, vibrating feeder or chute to collect magnetic elements especially ferrous elements from non-magnetic materials and clean the magnetic elements automatically. This product has a strong magnetic filed intensity and a long service life. It is dustproof, waterproof, fast radiating, automatic cleaning and corrosion-resistant.

Application:
Conveyor Belt Air-cooled Electromagnetic Separator is widely used in the fields such as power station, mines, metallurgy plants, construction materials, etc. They possess many advantages, such as low temperature rise, good insulation, strong magnetic force, low power consumption and reliable performance.

Features:
1.Low power consumption.
2.Easy to maintain for continuing reliable performance.
3.Low operating temperatures.
4.The coil is treated with special treatment, oxidation resistance, corrosion resistance and good insulation.

The heat dissipation area is big, the temperature rise is stable, the cooling effect is good.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of Conveyor Belt Air-cooled Electromagnetic Separator, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Conveyor Belt Air-cooled Electromagnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide the product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
