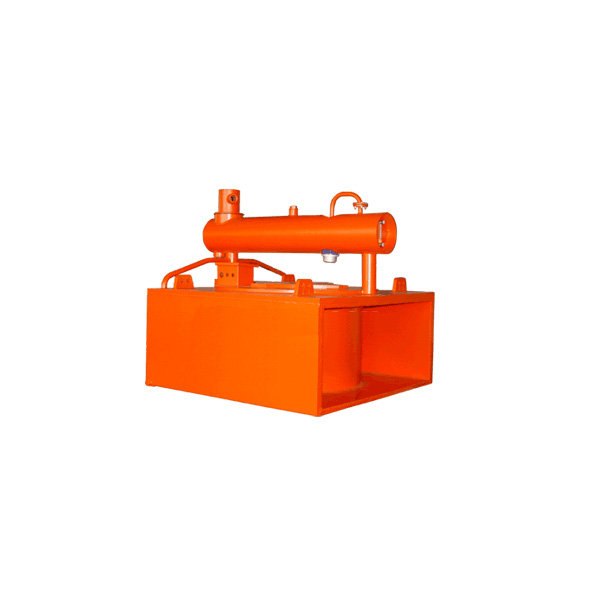

Oil-cooled Electromagnetic Separator

Name: Oil-cooled Electromagnetic Separator Country: China Usage: Applicable to coal preparation plants, thermal power plants, chemicals, mining, building materials and other industries in addition to iron C lassification : Electromagnetic Separator Parameters: Introduction： Oil-cooled...

Send Inquiry

Name: Oil-cooled Electromagnetic Separator
Country: China
Usage: Applicable to coal preparation plants, thermal power plants, chemicals, mining, building materials and other industries in addition to iron
Classification: Electromagnetic Separator

Parameters:

Model	Applicable bandwidth （MM）	Rated height of suspension(MM)	Magnetic induction of Rated height(GS)	Excitation power(KW)	Main dimensions				Weight (KG)
Model	Applicable bandwidth （MM）	Rated height of suspension(MM)	Magnetic induction of Rated height(GS)	Excitation power(KW)	A	B	C	D
RCDE-6	650	200	700	≤3.5	926	900	370	870	720
RCDE-8	800	250	700	≤4.5	1133	1050	460	960	1290
RCDE-10	1000	300	700	≤6	1333	1250	520	1020	2130
RCDE-12	1200	350	700	≤8	1593	1400	620	1120	2900
RCDE-14	1400	400	700	≤9.5	1793	1600	700	1200	3500
RCDE-16	1600	450	700	≤11.5	2000	1700	750	1250	5500

Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Magnetic induction of Rated height(GS)	Excitation power(KW)	Fan power(KW)	Main dimensions				Weight (KG)
Model		Applicable bandwidth （MM）	Rated height of suspension(MM)	Magnetic induction of Rated height(GS)	Excitation power(KW)	Fan power(KW)	A	B	C	D
RCDC-6	T1	650	200	900	≤5	---	926	1000	410	910	900
	T2			1200	≤6.5	0.37	1260	1100	470	970	1400
	T3			1500	≤9.5	0.55	1440	1200	550	1050	2000
RCDC-8	T1	800	250	900	≤6.5	---	1133	1100	500	1000	1500
	T2			1200	≤9.5	0.55	1470	1200	550	1050	2200
	T3			1500	≤12.5	1.1	1540	1300	640	1140	2900
RCDC-10	T1	1000	300	900	≤9	---	1333	1250	580	1080	2550
	T2			1200	≤12.5	1.1	1470	1250	640	1140	3050
	T3			1500	≤16.5	1.5	1890	1450	730	1230	4200
RCDC-12	T1	1200	350	900	≤11	---	1593	1500	650	1150	3750
	T2			1200	≤16.5	1.5	2090	1500	730	1230	4650
	T3			1500	≤21	0.55*2	1930	1600	850	1350	5900
RCDC-14	T1	1400	400	900	≤14	---	1793	1700	750	1250	5400
	T2			1200	≤20	0.55*2	2130	1700	860	1360	6100
	T3			1500	≤26.5	1.1*2	2130	1700	960	1460	7750
RCDC-16	T1	1600	450	900	≤16.5	---	2000	1900	850	1350	7650
	T2			1200	≤25	1.1*2	2340	1900	950	1450	8700
	T3			1500	≤33	1.5*2	2490	1900	1100	1600	10500

Introduction：
Oil-cooled Electromagnetic Separator uses international advanced transformer technology to cool down the separator with oil circulation. This product has a totally hermetical structure, high magnetic filed intensity and long service life. It is dustproof, waterproof and corrosion-resistant.
Power distribution control box: KGLA-50A/500V.

Application:
It can be applicable to coal preparation plants, thermal power plants, chemicals, mining, building materials and other industries in addition to iron. It can also work in dust, damp, corrosive harsh environment.

Features:

High magnetic filed intensity and special design for magnetic circuit.
2. The wholly sealed structure makes the magnetic separator water-proof, dust-proof and corrosion resisting.
3. Low energy consumption.
4. Easy to install and convenient to use.
5. High efficiency and stable performance.
According to the principle of heat transfer and oil-cooled patented technology to establish efficient heat dissipation model, effective to ensure that the continuous operation of the heat removal effect, so that the host in the low temperature rise under the conditions of smooth operation.
Coil insulation F above, the choice of new high-temperature heat transfer oil, oil design is reasonable, unimpeded, fast cycle, high thermal efficiency.
The coil is isolated from the outside, the closed structure, the design is reasonable, the contact area with the thermal medium is large, the heat dissipation is quick, the product structure is compact and simple, the layout is reasonable, light weight, no noise, easy operation and maintenance.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Oil-cooled Electromagnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
