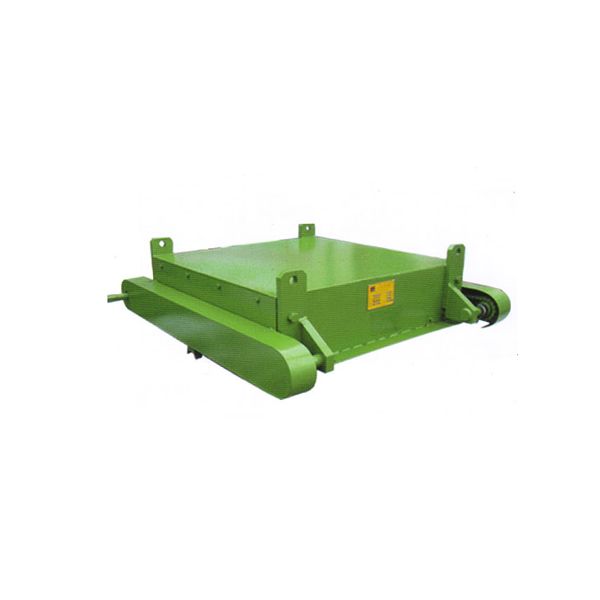

Manual Cleaning Permanent Magnet Separator

Name: Manual Cleaning Permanent Magnet Separator Country: China Usage: Applicable to various kinds of environment C lassification : Permanent Magnet Separator Parameters: Introduction： Manual Cleaning Permanent Magnet Separator is a kind of suspended magnets that are mainly designed to trap and...

Send Inquiry

Name: Manual Cleaning Permanent Magnet Separator

Country: China

Usage: Applicable to various kinds of environment

Classification: Permanent Magnet Separator

Parameters:

Model	RCY-P	RCY-P	RCY-P	RCY-P	RCY-P
Applicable bandwidth （MM）	400	500	650	800	1000
Rated height of suspension(MM)	125	150	200	250	300
Magnetic induction of Rated height(MT)	＞70	＞70	＞70	＞70	＞70
Applicable speed(m/s)	≤4.0
Suction capacity(kg)	0.1-30
Weight(kg)	310	460	630	910	1240
Suspension size(D*Emm)	340*340	460*460	600*600	770*770	1000*1000
Main Dimension(ABCmm)	900850400	1000875425	11501025438	13501225480	15001375510

Introduction：

Manual Cleaning Permanent Magnet Separator is a kind of suspended magnets that are mainly designed to trap and hold the tramp metal from the product carried by the conveyor.often associate with the belt conveyor, vibrating conveyor and electric magnetic vibrating feeding machine. It is installed in a variety of circumstances for de-iron production line to removing harmful tramp ferrous metal contamination from non-ferrous products.

It is ideal for cleaning the product stream for equipment protection on shredded plastic, being conveyed between shredders and granulartor to protect against costly knife damage and maxmize product purification.

Application:

1.The are used in mining industry wherein the material is kept moving on.

2.The magnets are also used in foundries for to clean the sand.

3.In iron and steel industry overband magnetic separator play a pivotal role.

4.The overband magnetic separators have also wide applicability in food, plastic and glass electronic,tire,pape,metal,or wood recycling industries.

Features:
1.These units can be installed either inline over the terminal head pulley or transversal to the conveyor. It can be well applied with wet, dry, fine or course materials.

2.Manual cleaning, with high performance and convenience operation.no power consumption.

3.The design of the magnetic field in this system was selected based on the optimizes computerizes simulation.The magnets used are either ferrite or powerful rare earth/NdFeB magnets.

4.They are available in both flat and curved shapes can customized for different varieties and configuration to meet the client`s various needs. and could be installed either above or below the passage of material flow,assure the product purity.

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:

As a professional manufacturer and designer of Manual Cleaning Permanent Magnet Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
