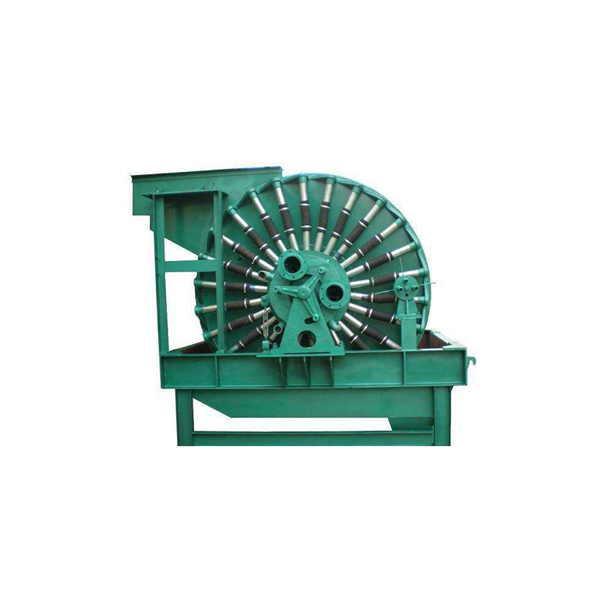

Rotary Vacuum Permanent Magnet Filter

Name: Rotary Vacuum Permanent Magnet Filter Country: China Usage: Applicable to the wastewater treatment for industries C lassification : Permanent Magnet Separator Parameters: Introduction： Rotary Vacuum Permanent Magnet Filter is a drum type, top feed, outer tube type, permanent magnetic...

Send Inquiry

Name: Rotary Vacuum Permanent Magnet Filter
Country: China
Usage: Applicable to the wastewater treatment for industries
Classification: Permanent Magnet Separator

Parameters:

Model		GYW-3	GYW-5	GYW-8	GYW-12	GYW-18	GYW-20
Filter area(㎡)		3	5	8	12	18	20
Dimension(mm)	Diameter	1600	2000			2000	2550
Dimension(mm)	Depth	700	900	1400	2000	2900	3100
Rotating Speed(r/min)		0.5-2
Magnetic induction of cylinder surface(mt)		80 87
Concentration of ore(%)		≥60				≥60
Concentrate moisture(%)		8-11			8-10	8-11
Processing capacity(Feed particle size is 0.15-0.80)(t/h)		6-9	14-18	22-43	33-65	50-90	54-108
Motor power(kw)		1.5	1.5	1.5	2.2	4	5.5
Rotating speed of motor(r/min)				940
Vacuum degree(Kpa)				60-80
Pumping volume(m³/min,㎡)				0.5-2
Blowing pressure(continuous blow)(Kpa)				10-30
Volume of blowing(m³/min,㎡)				0.1-0.5
Filter the area of the dehydration zone(°)				176
Angle of unloading area (°)				21
Regeneration zone angle(°)				100
Dimension（mm）		189525062087	211027552500	261029052500	321029052500
Weight(kg)		3265	3932	4754	5494	6100	6500

Introduction：
Rotary Vacuum Permanent Magnet Filter is a drum type, top feed, outer tube type, permanent magnetic vacuum filter. It is mainly applied to the dehydration of strong magnetic materials in coarser particles.

Application:
It is widely used in wastewater treatment for industries, such as chemical engineering, dyes, petroleum, pottery, pharmaceutical, sugar and food manufacturing, starch, syrup, painting, metallurgy and so on. It has a superiority in separation of adhesive material with advantages of good performance, wild application, easy operation, low cost, etc.

Features:
1.Compact structure and light weight.
2.Easy to maintain for continuing reliable performance.
3.Low operating temperatures.
4.The coil is treated with special treatment, oxidation resistance, corrosion resistance and good insulation.

The heat dissipation area is big, the temperature rise is stable, the cooling effect is good.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Rotary Vacuum Permanent Magnet Filter for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
