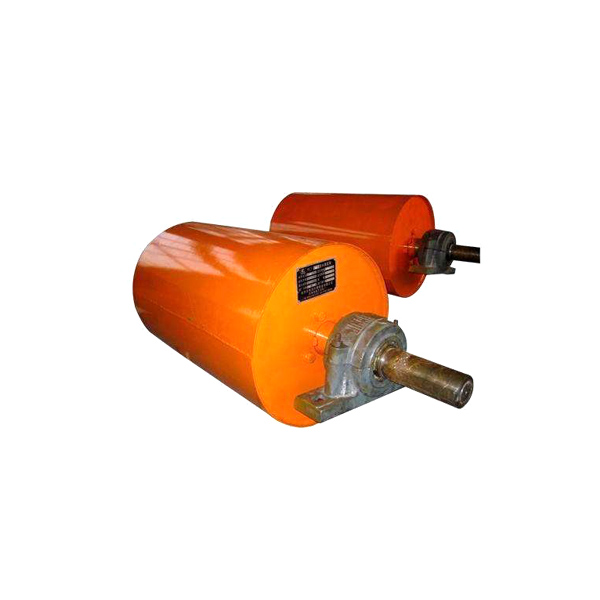

Permanent Magnet Roller For Separator

Name: Permanent Magnet Roller For Separator Country: China Usage: Applicable to mining , electric, coal, port, construction materials, etc. C lassification : Separator Accessories Parameters: Introduction： Permanent Magnet Roller is a drive permanent magnet clean metal device, also could be used...

Send Inquiry

Name: Permanent Magnet Roller For Separator

Country: China

Usage: Applicable to mining , electric, coal, port, construction materials, etc.

Classification: Separator Accessories

Parameters:

Model	CT-66	CT-67	CT-89	CT-89	CT-811	CT-814	CT-816	CT-1012
Drum Diameter(mm)	630	630	800	800	800	800	800	1000
Drum Length(mm)	600	750	950	950	1150	1400	1600	1150
The corresponding tape width(mm)	500	650	800	800	1000	1200	1400	1000
Roller surface magnetic induction(mt)	≥100-400
Particle size(mm)	10-75	10-75	10-100	10-100	10-100	10-100	10-100	10-350
Processing capacity(t/h)	110	140	220	220	280	3400	400	200-400
Maximum torque(N-m)	1598	2903	5482	5482	6825	3208	9276
Weight(kg)	725	850	1600	1600	1850	2150	2500	4100

Introduction：

Permanent Magnet Roller is a drive permanent magnet clean metal device, also could be used as rotational roller, could continual and automatic separate the ferromagnetism impurity which adulterate in non-magnetic material in the conveyer belt. To united this magnetic roller and hanging clean metal machine, could clean the impurity in the thick material layer.

Application:

Permanent Magnet Roller is divided into two series , coincide with externality and install size of type DT 11 and DT 75 drive roller. For using conveniently , it was be extensively used in many industry , such as mining , electric , coal , port, construction materials, petrol-chemical , foodstuff, etc.

Features:
1. The span of magnetic field in the surface of roller is big , this roller is conveniently used medium-sized magnetic field 150~250Mt and especial strong magnetic field 300~400Mt.

2. This roller has Jarless magnetic field, could be used more than ten years , the magnetic road in core is provided a eight year long quality assurance.

3. Could be used as drive roller of conveyer belt, and separator.

4. Compact structure, simple service , credible use.

5. It has a best effect in clean the impurity fe which in the bottom of the coal bed.

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:

As a professional manufacturer and designer of Permanent Magnet Roller For Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
