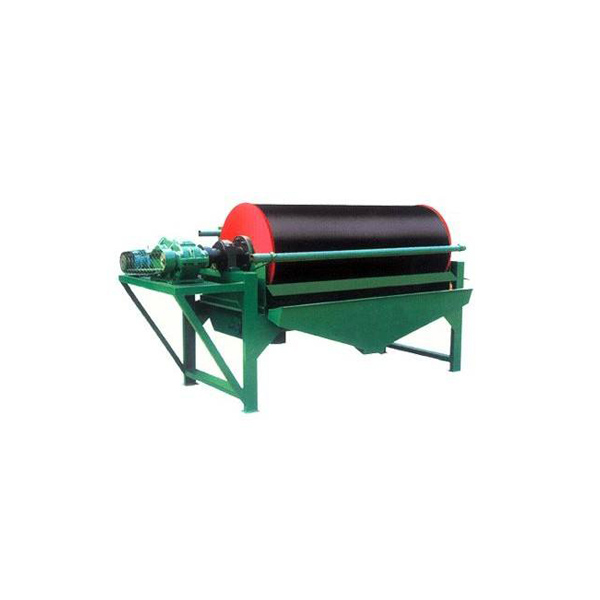

Wet Permanent Magnet Drum Separator

Name: Wet Permanent Magnet Drum Separator Country: China Usage: Applicable to separate medium and fine particles C lassification : Wet Magnetic Separator Parameters:

Send Inquiry

Name: Wet Permanent Magnet Drum Separator
Country: China
Usage: Applicable to separate medium and fine particles
Classification: Wet Magnetic Separator

Parameters:

Model	Drum	Magnetic induction of the drum’s surface(mt)			Processing capacity(t/h)		Motor Power(kw)	Rotating speed(r/mm)	Weight(kg)	Remark
Model	Diameter*Length (mm)	Magnetic pole geometric center value	Sweep area	Maximum magnetic induction strength	T/h	M³/h
CTS-44 CTN-44 CTB-44	400*400		130	160	1-2	3	1.1	45	350
CTS-46 CTN-46 CTB-46	400*600		130	160	1-3	5	1.1	45	600
CTS-63 CTN-63 CTB-63	600*300		145	170	3-5	8	1.1	40	600
CTS-66 CTN-66 CTB-66	600*600		145	170	5-10	16	1.1	40	800
CTS-69 CTN-69 CTB-69	600*900		145	170	8-15	24	1.1	40	910
CTS-612 CTN-612 CTB-612	600*1200		145	170	10-20	32	2.2	40	1100
CTS-618 CTN-618 CTB-618	600*1800		145	170	15-30	48	2.2	40	1350
CTS-712 CTN-712 CTB-712	750*1200	120	155	180	15-30	48	3	35	1500
CTS-718 CTN-718 CTB-718	750*1800	155	180	20*45	20-45	72	3	35	2100

Model	Drum		Magnetic induction of the drum’s surface(mt)		Processing capacity(t/h)		Motor Power(kw)	Rotating speed(r/mm)	Weight(kg)	Remark
Model	Diameter (mm)	Length (mm)	Average	Sweep area	T/h	M³/h
CTS-918 CTN-918 CTB-918	900*1800	148	165	190	25-55	90	4	28	2800
CTS-924 CTN-924 CTB-924	900*2400	148	165	190	35-70	110	4	28	4500
CTS-1018 CTN-1018 CTB-1018	1050*1800	148	165	190	40-75	120	5.5	22	400
CTS-1021 CTN-1021 CTB-1021	1050*2100	148	165	190	45-88	140	5.5	22	4500
CTS-1021 CTN-1021 CTB-1021	1050*2100	160	240	280	45-88	140	5.5	22	4500	There are left and right style
CTS-1024 CTN-1024 CTB-1024	1050*2400	148	165	190	52-100	160	5.5	22	5000	There are left and right style
CTS-1024 CTN-1024 CTB-1024	1050*2400	160	240	280	52-100	160	5.5	22	5000
CTS-1030 CTN-1030 CTB-1030	1050*3000	160	240	280	65*125	200	7.5	22	5000
CTS-1218 CTN-1218 CTB-1218	1200*1800	148	165	190	47-90	140	5.5	19	5800
CTS-1218 CTN-1218 CTB-1218	1200*1800	160	240	280	47-90	140	5.5	19	5800
CTS-1224 CTN-1224 CTB-1224	1200*2400	148	165	190	82*120	192	7.5	19	6200
CTS-1224 CTN-1224 CTB-1224	1200*2400	160	240	300	82*120	192	7.5	19	6200
CTS-1230 CTN-1230 CTB-1230	1200*3000	148	165	190	80-150	240	7.5	19	7200
CTS-1230 CTN-1230 CTB-1230	1200*3000	160	240	280	80-150	240	7.5	19	7200
CTS-1530 CTN-1530 CTB-1530	1500*3000	180	165	300	90-170	270	11	14	8200
CTS-1530 CTN-1530 CTB-1530	1500*3000	180	240	300	115-220	350	11	14	8200

Introduction：
According to the structure, the Wet Permanent Magnet Drum Separator could be include three type which is downstream tank(CTS), countercurrent tank(CTN) and half countercurrent tank(CTB) to match different separation requirement.

Application:
It is used to separating medium and fine particles of magnetic minerals, it also can be applied to remove mixed magnetic minerals in the non-magnetic minerals.

Working Principle:
The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder. The non magnetic and weak magnetic minerals are kept in the pump and are discharged from the chute with the pulp to become tailing.

Features:
1.This magnetic separator’s, magnetic field strength is better than other ordinary magnetic separator.
2.It is easy to operate and maintenance, and it is effective to save energy during operation.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Wet Permanent Magnet Drum Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
