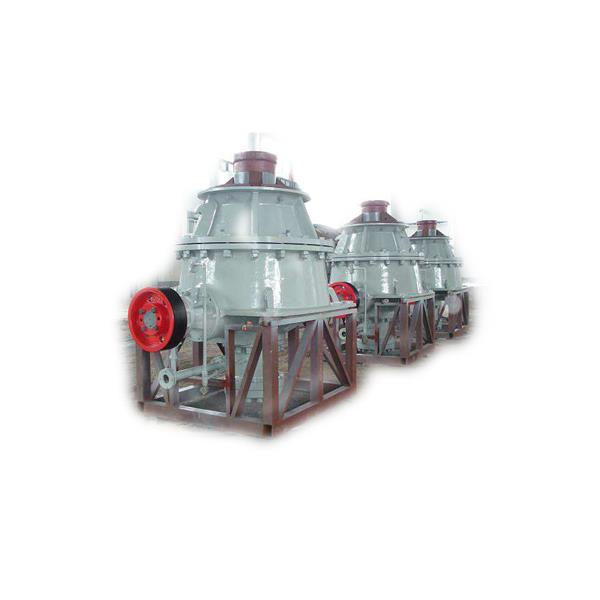

Single Cylinder Hydraulic Cone Crusher

The PYY-T Single Cylinder Hydraulic Cone Crusher is widely used in industries of metallurgy, chemical, construction material, water-power and road building, Advantages: smooth operation, high productivity, convenient adjustment an even graininess.

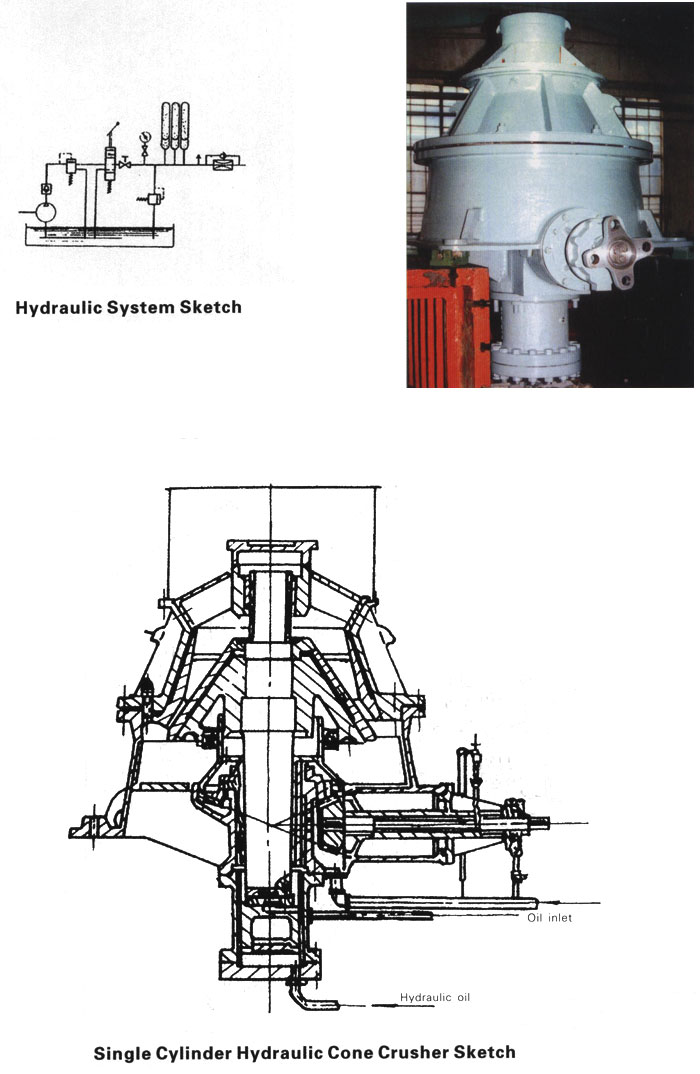

Single cylinder hydraulic is composed of driving part, eccentric bush, crushing cone, top frame, hydraulic cylinder part, lubricating part.When uncrushed material passing the crushing cavity or over loading by any reasons, the hydraulic pressure insurance system act to enlarging discharging opening, the uncrushed material discharged from crushing cavity, the discharging opening back to ordinary dimension, and then the crusher continue running.

Performance Parameter Table of PYY-T Single Cylinder Hydraulic Cone Crusher

Type		PYY-BT0913	PYY-ZT0907	PYY-DT0906	PYY-BT1219	PYY-ZT1215	PYY-DT1208	PYY-BT1628	PYY-ZT1623	PYY-DT1610	PYY-BT2235	PYY-ZT2229	PYY-DT2213
Drawing No.		K91420	K91421	K91422	K91423	K91424	K91425	K91426	K91427	K91428	K91429	K91430	K91431
Bottom cone dia.(mm)		900			1200			1650			2200
Inlet size(mm)		135	75	60	190	150	80	285	230	100	350	290	130
Outlet range(mm)		15-40	6-20	4-12	20-45	9-25	5-23	25-50	13-30	7-14	30-60	15-35	8-15
Max. Inlet size recommended(mm)		115	65	50	160	130	70	24	195	85	30	230	110
Output(t/h)		40-100	17-55	15-50	90-200	45-120	40-100	210-425	120-280	100-200	450-900	250-580	200-380
Main motor	Model	Y315S-8			Y315M2-8			JS137-10			Y400-12
	Power(kw)	75			110			115			280
	Speed (r/min )	740			740			590			490
	Voltage(V)	380			380			380			6000
Pendulum times(tims/min)		335			300			250			220
Crushing force max.(t)		63			120			200			300
Discharged max. uncrushed material as in Min. outlet size.(mm)		55	50	45	70	65	60	100	90	80	130	110	100
Lubricating station Capacity(L/min)		63			100			160			250
Overall sizel	Length(mm)	2.96			3.95			4.77			6.5
	Width(mm)	1.55			1.9			2.6			3.6
	Height(mm)	2.329	2.362	2.322	3.14	3.1	3.06	4.1	4.04	3.99	5.4	5.3	5.3
Total weight(t)		10.2	10.2	10.2	19	18.1	18.6	37.1	37	36.9	77.9	77.1	76.8
Remarks		1. Total weight excluds motor weight　　2. Motor and main machine adopt belt driving


Brief description about Single Cylinder Hydraulic cone crusher
Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses diluted oil and water as two kinds of sealed formation to make plaster powder and engine oil separated . The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

Features Of Single Cylinder Hydraulic cone crusher:
1. Laminating crushing.
2. Well-proportioned particle size.
3. Superior crushing capacity.
4. Successive stable operation.
5. High production capacity (2 times than previous crusher)
6. Adoption of straight metallic contact, which make the replacement of active and fixed cone liners more fast and easy.
7. High efficiency revolving input unit make liners wear evenly.
8. Sweeping system keep its interior tidy.
9. Wide angle star jib make the entry of material more smooth.
10. Automatic overload protection system which prevent from interfusion of iron material.
11. Screw bevel gear system with mute operated.
