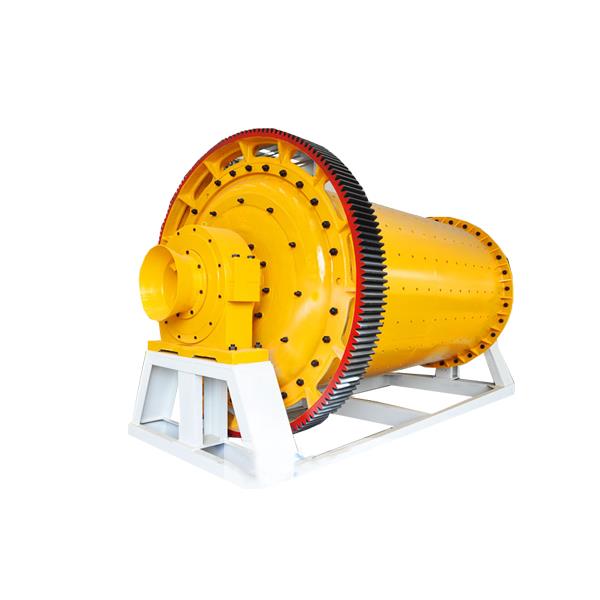

MQS Wet Grate Ball Mill Machine

• Product Details

1.MQS Wet Grate Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns.
 2.To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced.
 3.Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.
 4. MQS Wet Grate Ball Mill is an efficient tool for grinding many materials into fine powder.
 5.The MQS Wet Grate Ball Mill is used to grind many kinds of mine and other materials, or to select the mine.
 6. MQS Wet Grate Ball Mill is widely used in building material, chemical industry, etc.

Performance Parameter Table of MQS Wet Grate Ball Mill

Performance Parameter Table of MQS Wet Grate Ball Mill

Weight of Each Parts（kg）


 Working principle of MQS Wet Grate Ball Mill：
 MQS Wet Grate Ball Mill is a horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material evenly goes into the first chamber from the feeding inlet through the hollow shaft in a spiraling way. Inside the first chamber, there are stage liners and ripple liners as well as different kinds of steel balls. The shell rotates to generate eccentricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.

After the primary grinding, material enter the second chamber through segregate screen. In the second chamber, there are flat liners and steel balls which will further grind the material. After the secondary grinding, material is discharged from the discharging screen. Then the whole grinding process ends.

Features of the MQS Wet Grate Ball Mill:

1. The main bearing is made of full diameter and double self-aligning rod bearing, instead of the former sliding bearing, which reduces friction and energy consumption. So the grinding machine is easy to start.
 2. The ball mill is with big diameter discharging mouth and high production capacity.
 3. Feeders include joint feeder and drum feeder, whose structure is simple and split installation.
 4. Ball mill has no inertial impaction and is operated smoothly, which reduces the time of parking to maintain and increase its efficiency.

The installation of MQ ball mill
 Ball mill should be installed on a solid concrete foundation. Ball mill on the basis of design and construction of see ball mill assembly diagrams and foundation drawing. In order to guarantee the position accuracy of ball mill parts in use process does not have big change, ball mill on the basis of the whole structure should be adopted.

Concrete foundation compressive strength after reaching more than 75% can be installed on ball mill. Before installing response of quality inspection, the defects of the strength of concrete has no effect, the number of the reserved hole position and meets the requirements, the reserved hole clutter and without water, without pollution. By using "ground", when installation, on the surface should be embedded based on "center the board". Before installation on the basis of the center line of the draw all and made on the "center the board" marked the impact point of tag, as the middle line of the benchmark when installation.
 Hoisting before dealing with ball mill for full acceptance of the parts, handle in time when problems found.
 1, the specific requirements of the main bearing part see main bearing parts assembly drawing.
 2, barrel part see rotary part assembly drawing.
 3, transmission part see part of the assembly drawing.
 4, overall relative position see assembly drawing.

Our Services:
 Pre-sale services: enthusiasm
 We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
 Sale services: servant
 Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
 After-sale services: faithfulness
 To establish long term friendship, we will regularly pay return visit to customers.
 In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

•
