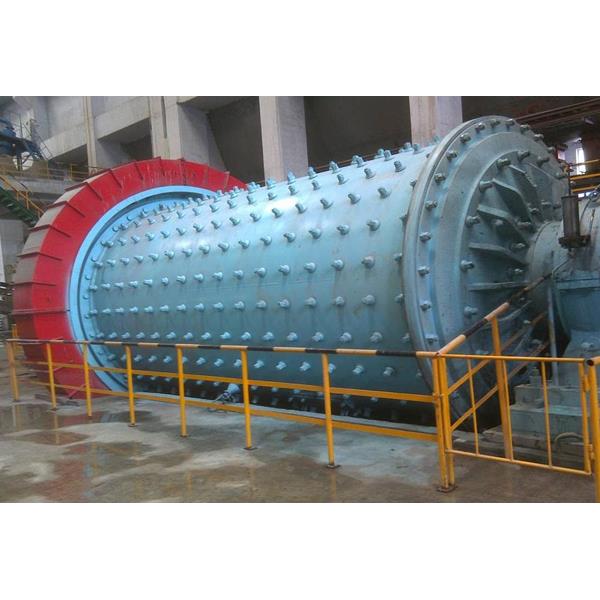

MG Tube Mill Machine

MG Tube mill for cement clinker grinding of various building materials industry label and main equipment of burning various cement raw materials. It has the advantages of simple structure, high adaptability to raw materials, the characteristics of large capacity, big crushing ratio etc.. Due to the different grinding process and grinding methods, our products are dry, wet, wet and dry, such as a variety of structural pipe mill for users to choose. In order to meet the requirements of users, in recent years, our factory has adopted a fully enclosed self aligning main bearing. This bearing has the static pressure structure, uses the high and low pressure oil station lubrication. The inner tube of the tube mill adopts a stepped lining board and an angle spiral lining plate. Liner material for high chromium cast iron is conducive to the production efficiency, reduce energy consumption and consumption of grinding.

Technical Parameters of MG Tube mill

Specification			2MGN-B 1505	2MGG-B 1806	2MGG-B 1806	2MGG-B 1807	2MGG-Z 2206	2MGG-B 2607
Capacity （t/h）		Cement	4-12	6	6	7.2	10-11	20-27
Capacity （t/h）		Raw Material		8.5	8.5	10	18-19	35-37
Method of Grinding			dry process	dry process	dry process	dry process	dry process	dry process
Diameter(mm)			1.5	1.83	1.83	1.83	2.2	2.6
Length(mm)			5.7	6.4	6.4	7	6.5	7.9
Rotation			Left / right	right	Left / right	Left / right	Left / right	Left / right
Revolution (r/mm)			29.2	23.9	23.9	23.9	20.79	19.5
Medium Load(t)			15	18.5	18.5	21	27	47
Driving Method			Fringe	Fringe	Fringe	Fringe	Center	Fringe
Motor	Model		JR127-8	JR137-8	JR137-8	JR138-8	YR118 /44-12	TDMK /630-36
	Power(kw)		130	210	210	245	400	630
	Speed (r/min)		725	735	735	735	500	167
	Voltage(v)		380	380	380	380	6000	6000

Specification		3MGG-B 2610	3MGN-Z 3009	3MGN-Z 3011	2MGS-B 1505	4MGS-Z 2413	3MG-Z 2213
Capacity （t/h）	Cement	25-26	50#37 600#30	500#38 600#30			17-18
Capacity （t/h）	Raw Material	44-47			4-12	38-45	27-30
Grinding Method		dry process	dry process	dry process	wet process	wet process	Dry and wet process
Diameter(mm)		2.6	3	3	1.5	2.4	2.2
Length(mm)		10	9	11	5.7	13	13
Rotation		Left/Right	Right	Right	Left/Right	Right	Right
Speed (r/mm)		19.5	17.52	17.65	29.2	19.46	21.6
Medium Load(t)		60	80	98	15	60-70	52
Driving Method		Fringe	Center	Center	Fringe	Center	Center
Motor	Model	TDMK /800-36	JR118 /61-8	JR118 /74-8	JR127 -8	JR118 /49-8	YR500 -8
	Power(kw)	800	1000	1250	130	800	630
	Speed (r/min)	167	742	742	725	742	738
	Voltage(v)	6000	6000	6000	380	6000	6000

Specification		3MG-B 2613A	3MG-C 2613	3MG-Z 2613B	3MG-B 2613	3MGN-B 3213
Capacity （t/h）	Cement	28-29	28-29	28-29	28-29	55
Capacity （t/h）	Raw Material	43-50	43-50	43-50	43-50
Grinding Method		Dry-Wet	Dry-Wet	Dry-Wet	Dry-Wet	Dry
Diameter(mm)		2.6	2.6	2.6	2.6	3.2
Length(mm)		13	13	13	13	13
Rotation		Left/Right	Left/Right	Right	Left/Right	Right
Speed (r/mm)		19.5	19.5	19.5	19.5	17.8
Medium Load(t)		78	78	78	78	125
Driving Method		Fringe	Fringe	Center	Fringe	Fringe
Motor	Model	TDMK -1000 -36	TDMK /1000 -36	YR1000 -8/1180	TDMK -1000 -36	YR1600 -8/1730
	Power(kw)	1000	1000	1000	1000	1600
	Speed (r/min)	167	167	740	167	743
	Voltage(v)	6000	6000	6000	6000	10000

Specification		2MG-B 2206	3MGN-B 3012	MGN-Z 3288	MGN-Z 3510	MGN-Z 3511	2MGN-Z 3813
Capacity （t/h）	Cement	14-15	Opening Circuit 27 Circle Flow 33				60-62
Capacity （t/h）	Raw Material			50	75	80
Grinding Method		Dry	Dry	cantilever stoving	Middle stoving	Tail stoving	Dry
Diameter(mm)		2.2	3.0	3.2	3.5	3.5	3.8
Length(mm)		6.5	12	8.8	10	11.5	13
Rotation direction
Shell revolution (r/mm)		20.79	17.6	17.7	16.5	16.5	16.3
Medium Load(t)		31	100	56	80	100
Driving Method		Fringe	Fringe	Fringe	Center	Center	Center
Motor	Model	JR158-8	JR1450 - 8/1400	JR5601 -8	YR1250 -8/1430	YR1800 -8/1400	YR2500 -8/1730
	Power (kw)	380	1450	800	1250	1800	2500
	Speed (r/min)	745	741	745	741	743	740
	Voltage(v)	380	6000	6000	6000	6000	6000

Note：1.3MG 2613A: pneumatic clutch is used between main motor and drive unit
2.3MG 2613B: spiral angular liner is used for shell

Characteristics of MG tube mill:
a.The adaptability of material physical properties (such as particle size, moisture, hardness, etc.) is strong, and the production capacity is large.

b.Crushing ratio is large (generally more than 300, ultra-fine grinding up to more than 1000), the product fineness, and particle size is easy to adjust.

d.Can adapt to different situations of the operation: dry operation, but also wet operation, but also the drying and grinding of the two processes together at the same time operation; open circuit grinding, but also closed circuit grinding.

d.The good sealing performance, can be negative pressure operation, no dust flying site.
For the large scale, can meet the needs of modern enterprises for mass production.
