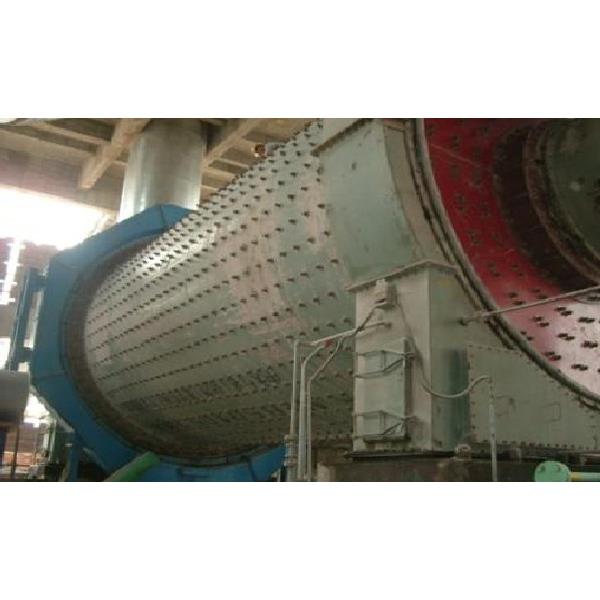

Triple-bin Tube Mill Machine

• Product Details

Fine and high-capacity tube mill refers to ratio of length to diameter above 4. Cylinder has divided into 2 or 3 bins, and is also called as cement grinding mill. Compared with single bin tube mill, the multi-bin tube mill has wider applications. Inside multi-bin tube mill, mill barrel has divided into several bins by partition panel. Each bin equips different grinding body according to the degree of fine crushing, which makes the fine crushing conducted in stages. Thus, it gains higher grinding efficiency. It is usually used in cement plant for dry grinding raw material and grog, and also can be used in chemistry, metallurgy industries, etc. After special alteration, it can be used in fine crushing slag or water residue. The manufacturing capacity is 30%~50%of the standard capacity when it applied in Fine grinding slag.

Working Principle of Triple-bin Tube Mill

When the cylinder of the grinding mill rotates driven by the transmission gear, under the inertial centrifugal force, the grinding media will stick onto the lining board on the internal wall of the cylinder of the grinding mill and rotate together with the cylinder.

The grinding media are brought to a certain height, and then fall down under the gravity, and during this process, the grinding media will crush the materials inside the cylinder, and at the same time the grinding media repeatedly move up and down inside the rotating grinding mill and will have sliding and rolling movement, so that the grinding media, the lining board and the materials to be ground will grind with each other, so that the materials are crushed to a finer granularity.

Features of Triple-bin Tube Mill

(1)Low energy consumption:Open Flow China Cement production line adopted high advanced energy-saving technology and classification technique; as a result, our production line can save over 40% energy for producing same quantity materials.
(2) Several times of classification could be obtained:
Finished product fineness after first time classification: 300-2500mesh; if our ball mill production line is equipped with a second classification system, the finished product fineness after second time classification would be6,250mesh (d97≤2um).
(3)Adopt high advanced self-diffluent classification system.
(4)Produce large quantity superfine particles for (5)Different lining boards and grinding mediums are available for milling different materials, so as to guarantee the purity and whiteness of finished products.
(6)Scientific machine structure enables a lower investment cost;
(7)Low failure rate and stale operation: because our ball mills and classifiers in the production lines are VFC controlled and have high automation;
(8)Negative pressure production condition gives a good production environment;
(9)High annual production capacity: 5-500 thousand tons.

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

•
