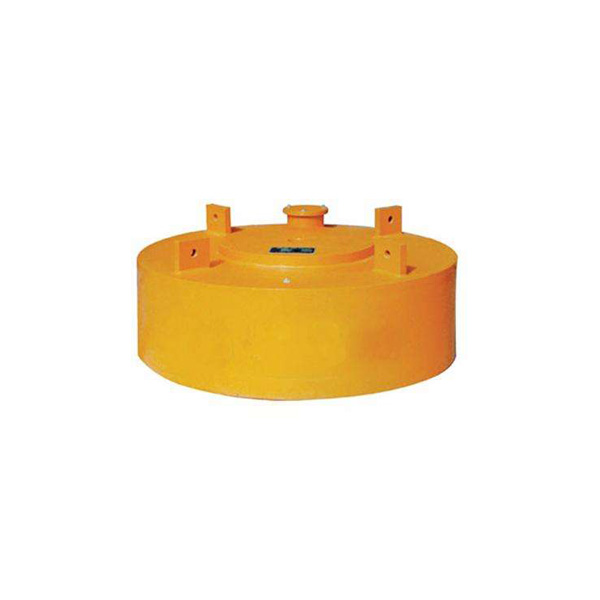

Dry Electromagnetic Separator

Name: Dry Electromagnetic Separator Country: China Usage: Applicable to all kinds of materials used in the harsh environment C lassification : Electromagnetic Separator Parameters: 1.Main Parameters: 2.Parameters of Small Sized Products: 3.Parameters of Huge and Medium Sized Products...

Send Inquiry

Name: Dry Electromagnetic Separator
Country: China
Usage: Applicable to all kinds of materials used in the harsh environment
Classification: Electromagnetic Separator

Parameters:

1.Main Parameters:

Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions				Weight (KG)
Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	B	C	D
PDC-5	Self-cooled	500	150	≤2	≥70	910	460	600	390	445
PDC-6		650	200	≤3	≥70	1010	547	700	480	710
PDC-8		800	250	≤4	≥70	1110	640	800	582	1040
PDC-10		1000	300	≤7.5	≥70	1260	670	950	670	1550
PDC-12		1200	350	≤9.5	≥70	1410	750	1150	770	2350
PDC-14		1400	400	≤12	≥70	1500	830	1350	867	3000
PDC-16		1600	450	≤14.5	≥70	1710	930	1500	947	4000
PDC-18		1800	500	≤18	≥70	1950	1003	1700	1020	5350
PDC-20		2000	550	≤31.5	≥70	2148	1015	1900	1090	6600

2.Parameters of Small Sized Products:

Model		Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions		Weight (KG)
Model		Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	C	Weight (KG)
PDC-6	T1	Self-cooled	650	200	≤5	90	1110	640	1050
	T2				≤7.5	120	1260	670	1550
	T3				≤9.5	150	1410	750	2350
PDC-8	T1		800	250	≤7.5	90	1260	670	1550
	T2				≤9.5	120	1410	750	2350
	T3				≤14.5	150	1610	940	3600
PDC-10	T1		1000	300	≤9.5	90	1410	750	2350
	T2				≤14.5	120	1610	950	3800
	T3				≤19.5	150	1810	1000	5300
PDC-12	T1		1200	350	≤12	90	1560	830	3000
	T2				≤7.5	120	1810	1000	5300
	T3				≤24	150	2050	1100	7000
PDC-14	T1		1400	400	≤18.5	90	1710	982	4350
	T2				≤21	120	2050	1050	6600
	T3				≤35	150	2200	1130	8700

3.Parameters of Huge and Medium Sized Products

Model		Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions		Weight (KG)
Model		Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	C	Weight (KG)
PDC-16	T1	Self-cooled	1600	450	≤20.5	90	1900	1000	5300
	T2				≤28.5	120	2250	1150	9000
	T3				≤42	150	2300	1220	12500
PDC-18	T1		1800	500	≤26	90	2150	1100	700
	T2				≤33.5	120	2200	1250	9700
	T3				≤50	150	2500	1350	15500
PDC-20	T1		2000	550	≤30	90	2300	1255	9100
	T2				≤39.5	120	2350	1330	15200
	T3				≤59	150	2650	1450	19300
PDC-22	T1		2200	600	≤34	90	2400	1260	12900
	T2				≤45.5	120	2500	1440	17800
	T3				≤69	150	2800	1560	23300
PDC-24	T1		2400	650	≤41.5	90	2600	1400	16000
	T2				≤52	120	2650	1540	22000
	T3				≤78	150	2950	1650	27800

Introduction：
RCDB Series dry electromagnetic separator is also called PDC series disk electromagnetic separator.

Application:
Dry Electromagnetic Separator is applicable to open air and a variety of light dust environment. It is usually suspended over the conveyor belt to collect ferrous elements from non-magnetic materials before the crushing or milling process, and so as to protect the crushing and milling machines.

Features:
1.Compact structure and light weight
2. Maintenance-free
3.Low operating temperatures
4.The coil is treated with special treatment, oxidation resistance, corrosion resistance and good insulation

The heat dissipation area is big, the temperature rise is stable, the cooling effect is good
Small size, no noise, patented magnetic structure, cooling effect is good, it can be achieved manual and remote program control

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Dry Electromagnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
