Name: Concentration Drum Magnetic Separator Country: China Usage: Applicable to various kinds of situations C lassification : Magnetic Separator Parameters: Introduction： Concentration Drum Magnetic Separator is a device which is designed to assist with the purification and separation of process...

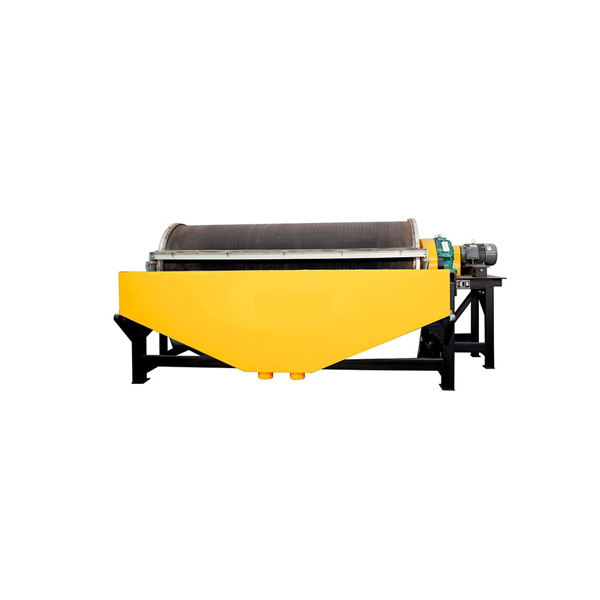

Name: Concentration Drum Magnetic Separator
Country: China
Usage: Applicable to various kinds of situations
Classification: Magnetic Separator
Parameters:
Model | Concentration of ore discharge(%) | Concentration selected(%) | Magnetic induction(mt) | Particle size(mm) | Processing capability(t/h) | Motor power(kw) | Weight(t) |
CTN718 | ≥65 | ≥30 | The magnetic induction is determined according to the mineral properties | 0.1-3 | 60 | 3 | 2.4 |
CTN918 | ≥65 | ≥30 | 0.1-3 | 75 | 4 | 3.3 | |
CTN1018 | ≥65 | ≥30 | 0.1-3 | 80 | 5.5 | 4.3 | |
CTN1021 | ≥65 | ≥30 | 0.1-3 | 95 | 5.5 | 4.8 | |
CTN1024 | ≥65 | ≥30 | 0.1-3 | 115 | 5.5 | 5.3 |
Introduction：
Concentration Drum Magnetic Separator is a device which is designed to assist with
the purification and separation of process streams. The heart of each separator is magnetic system, which adopts high quality ferrite materials and rare earth magnets, the average magnetic induction intensity on the shell surface is 100~600mT. This product has the advantages of simple structure, big processing capacity, convenient operation and easy maintenance.
Application:
1.For primary rough dressing and refused tails, increasing recovery rate and reducing the load of second-stage grinding.
2. For concentration of ferromagnetic minerals, increasing ore grade and recovery rate.
3.Used before high-magnetism separation to remove ferromagnetic minerals from the ore and prevent magnetic clogging.
4.For recovery of heavy media at coal processing plants.
Features:
1. The strength of magnetic field is large in the surface of tube.
2. Large wrap angle of magnetic system.
3. The strength of magnetic field is stability.
4. The transmission system is stable and reliable.
5. Can significantly improve the grade of ore before it is into the mill.
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
More:
As a professional manufacturer and designer of Concentration Drum Magnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
