Name: Disc magnetic separator Country: China Usage: Applicable to the tails recovery C lassification : Magnetic Separator Parameters: Introduction： Disc magnetic separator is the largest product designed by our company together with China Science Academy. This equipment uses the NdFeB magnets to...

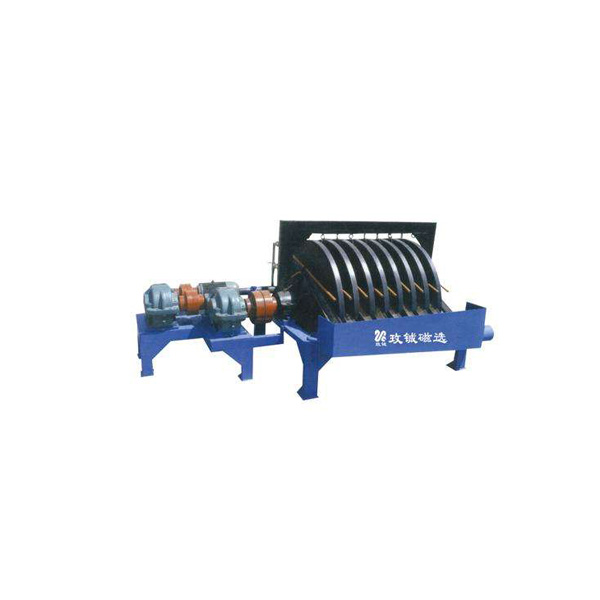

Name: Disc magnetic separator
Country: China
Usage: Applicable to the tails recovery
Classification: Magnetic Separator
Parameters:
Model | Disc diameter (mm) | No. Of Disc (pcs) | Working area (㎡) | Strength of disc surface magnetic field(mt) | Concentration of ore (%) | Processing capability (㎡) | Unloading water pressure (fg/cm³) | Motor power (kw) | Rotating speed (r/min) | Particle size (mm) | Weight (t) |
CP-100-8 | 1000 | 8 | 6.8 | 145 | 8-20 | 300-400 | 1.5 | 3 | 3.2 | 0.07-1 | |
CP-120-8 | 1200 | 8 | 12.8 | 145 | 8-20 | 500-600 | 1.5 | 4 | 2.5 | 0.07-1 | |
CP-150-8 | 1500 | 8 | 25.7 | 145 | 8-20 | 800-1200 | 1.5 | 4 | 2 | 0.07-1 | 5 |
CP-200-12 | 2000 | 12 | 72 | 145 | 8-20 | 2000-3500 | 1.5 | 7.5 | 2 | 0.07-1 | 11.75 |
Introduction：
Disc magnetic separator is the largest product designed by our company together with China Science Academy. This equipment uses the NdFeB magnets to form the magnetic ring system,which can react directly on the magnetic material with powerful field intensity, high gradient and good reclaiming rate,Depending on the density of the magnetic material,the V–Scraper can help to discharge the material,this system has been widely popular in the production line such as metallurgy. mining, building material, power plant, Coal washing plant, steel plant(steel slag), sintering plant discharge the waste slurry magnetic material with high efficient recovery and exploitation.
Application:
Disc magnetic separator is currently the most commonly used tails recovery equipment. As the specialized machine for tails re-separation, its key features are simple structure, high flexibility, high treatment capacity and adapting to complex composition of tails.
Features:
1. Strong magnetic intensity.
2. Low energy consumption.
3. High recovery rate.
4. High efficiency and stable performance.
5. Good economic returns.
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
More:
As a professional manufacturer and designer of Disc magnetic separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
