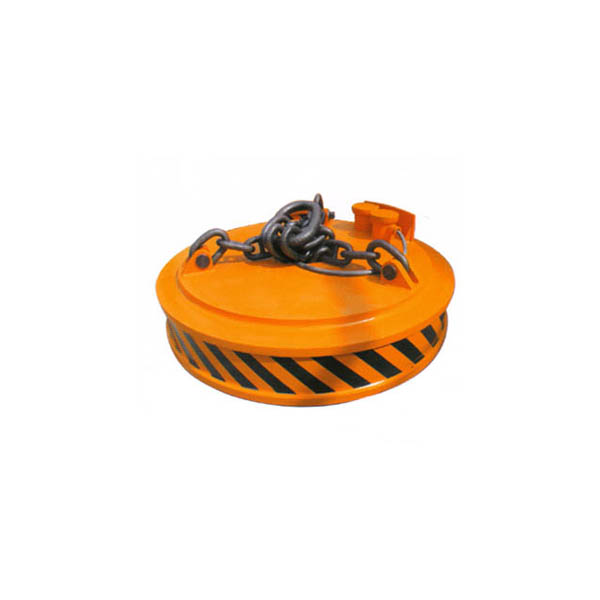

Electromagnet Crane

Name: Electromagnet Crane Country: China Usage: Applicable to handle steel materials or heavy steel cargos C lassification : Separator Accessories Parameters: Remark: 1.Rated voltage:DC-220V, Working system:TD-60%. 2.Strong excitation mode, when start lifting:DC-290V, when lifting:DC-200w....

Send Inquiry

Name: Electromagnet Crane
Country: China
Usage: Applicable to handle steel materials or heavy steel cargos
Classification: Separator Accessories

Parameters:

Model			KMW5-70	KMW5-90	KMW5-110	KMW5-130	KMW5-150	KMW5-165	KMW5-180	KMW5-185	KMW5-210	KMW5-240
Dimension	A	mm	700	900	1100	1300	1500	1650	1800	1850	2100	2400
	B		840	1100	1150	250	1300	1500	1500	1550	1900	2000
	C		160	190	210	240	340	340	360	360	400	450
	D		100	120	140	170	200	200	220	220	250	280
	E		35	40	50	60	60	60	5	75	80	90
Weight		kg	510	850	1400	2150	2850	3650	4600	5000	6700	8700
Cold current		A	16	26	35	53	71	80	102	108	125	150
Consumption		kw	3.5	5.7	7.7	11.7	15.6	17.6	22.4	23.8	27.5	33
Lifting capacity(kg)	Steel ball		2500	4500	6500	8500	11000	13000	14500	15500	21000	23000
	Cast iron ingots(cold/hot)		400	620	1050	1450	2000	3400	2800	3100	3600	4900
	Cast iron ingots(cold/hot)		210	420	810	1150	1600	1850	2100	2300	2900	4100
	Stub bar(cold/hot)		400	620	1050	1450	2000	2200	2800	2900	3600	4100
	Stub bar(cold/hot)		210	420	810	1150	1600	1800	2100	2200	2900	3400
	Chip(cold/hot)		130	260	460	710	1000	1400	1550	1750	2150	2950
	Chip(cold/hot)		110	210	410	610	850	1200	1300	1500	1800	2350
Set	Cable connector		DL-102						DL-202
	Cable reel		JTA50-15-211			JTA65-15-211	JTA80-15-211		JTA120-15-211		JTA150-15-211
	Cable		100m㎡ Cable core：2 20m No.:One			16m㎡ Cable core：2 20mm No.:One			25m㎡ Cable core：2 20mm No.:One		35m㎡ Cable core：2 20mm No.:One
	Rectifier control cabinet		LA-5	LA-10		LA-15	LA-20		LA-25		LA-30	LA-35

Remark: 1.Rated voltage:DC-220V, Working system:TD-60%.
2.Strong excitation mode, when start lifting:DC-290V, when lifting:DC-200w.

Introduction：
Electromagnetic crane uses magnetism to pick up and move objects, as opposed to a pincer or claw used by more traditional cranes, which makes it ideal for any lifting tasks involving metal. Electromagnetic cranes are often used in recycling plants or scrap yards due to the high amounts of metal that need to be moved.

Application:
Electromagnetic crane is a special crane working with magnet lift tools to handle steel materials or heavy steel cargos. Electromagnetic crane with magnet chuck to handle steel scraps or iron ore. Electromagnetic crane with carrier beam to handle long or big steel steel product such as steel bar, steel pipe, steel plate.

Features:
1.Magnet keeper for 30 minutes when power failure.
2.Voltage lose protector.
3.Electric current overload protector.
4.Overweight protector.
5.Emergency stop system.
6.High quality flat cable for trolley power supply.
7.Buffer for anti-collision.
8.Limit switch for all travel mechanism, and limit switch for lifting.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Electromagnet Crane for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
