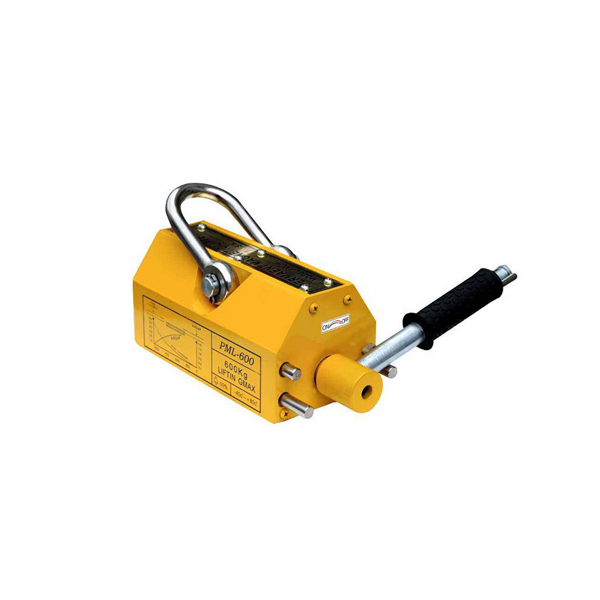

Permanent Lifting Magnet

Name: Permanent Lifting Magnet Country: China Usage: Applicable to move plate steel, block or round steel, etc. C lassification : Separator Accessories Parameters: Introduction： Permanent Lifting Magnet has strong magnetic path produced by NdFeB magnet. On and off of the magnetic path is...

Send Inquiry

Name: Permanent Lifting Magnet

Country: China

Usage: Applicable to move plate steel, block or round steel, etc.

Classification: Separator Accessories

Parameters:

Model	Rated iron suction weight	Maximum iron suction weight	Permissible temperature	Dimension (mm)			Weight (kg)
Model	Rated iron suction weight	Maximum iron suction weight	Permissible temperature	A	B	C	Weight (kg)
HYQZ-150	150	200	85	150	120	130	20
HYQZ-300	300	400	85	200	120	130	30
HYQZ-500	500	600	85	250	130	140	40
HYQZ-800	800	900	85	400	200	150	60
HYQZ-1000	1000	1300	85	500	250	150	100
HYQZ-2000	2000	2500	85	600	300	150	150
HYQZ-3000	3000	3500	85	650	350	200	230
HYQZ-4000	4000	4500	85	720	410	260	350

Introduction：

Permanent Lifting Magnet has strong magnetic path produced by NdFeB magnet. On and off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate ,long-period effort and without power supply.

Application:

Permanent Lifting Magnet is fast and safe to move plate steel, block or round steel, and iron material in your shop. Super-powerful lifting magnet requires no electricity. It's perfect for loading or unloading most workpieces including press molds, plastic molds, machined parts.

Features:
1.3.5 times the recommended lifting load.
2.Swivel ring.
3.Safe and convenient, with a switch handle security button, one-handed operation can be realized.
4.Without electricity.
5.Magnetic holding force is almost timeless.
6.Made by high-performance magnetic materials(NdFeB).

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:

As a professional manufacturer and designer of Permanent Lifting Magnet for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
